Project Description

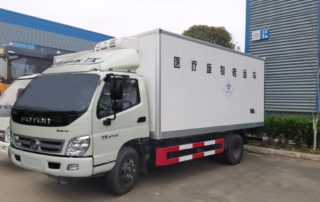

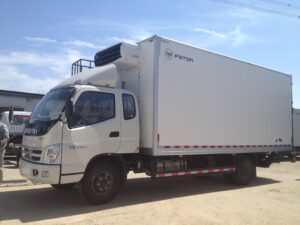

FOTON AUMARK T33/T38/T43 Medical Waste Transportation Truck
| Vehicle model | AUMARK-T33 | AUMARK-T38 | AUMARK-T43 | |
| Cabin | Single row/W1800/left rudder | Single row/W1995/left rudder | Single row/W1800/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×1915×2230 | 6785×2130×2330 | 5975×1925×2230 |
| Wheel base(mm) | 3360 | 3800 | 3360 | |
| Weight data | Curb weight(kg) | 2100 | 3110 | 2300 |
| Gross vehicle weight（kg） | 4485 | 8500 | 5500 | |
| Persons in cab | 3 | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 | 95 | 95 |
| ENGINE | Model | BJ493ZLQV1 | YC4D130-33 | 4J28TC |
| Emissions standards | EuroⅢ | EuroⅢ | EuroⅣ | |
| Displacement（L） | 2.771 | 4.214 | 2.771 | |
| Rated Power（kw/rpm） | 80 | 96 | 81 | |
| Max torque （N.m/rpm） | 280 | 380 | 280 | |
| Gearbox | Model | JC5-28 | 6T120 | 6T100 |
| Front axle | Type/Mainreducetion ratio | 2.2T | 2.5T | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.0T/6.142 | 6.0T/5.286 | 5.0T/5.375 |
| Suspension | Front suspension/Leaf spring number | 3+1 | 9 | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | 11+7 | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Central drum brake | Brake gas brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 7.00R16) | 6+1/( 8.25R16) | 6+1( 7.00R16) | |

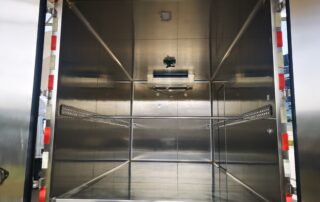

| Packing case | Internal size | 4100*2000*2000 |
| The material | Outside: glass plate, inside: stainless steel plate, sandwich: polyurethane board (≥40kg/m3) | |
| thickness | Thickness of front plate, backplate and roof: 60mm, the thickness of the left and right plate: 80mm, the thickness of floor: 82mm | |
| The framework | The upper and lower frames and front columns are aluminum profiles or stainless steel | |
| Open the door form | Double rear door, passenger side single side door | |
| The refrigeration unit | Brand and Specifications | American Cold King /KV300 |
| Refrigeration requirements | Minimum temperature: -18℃ | |
| The optional features | No backup electricity, no heating | |
| The attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
| Door lock and folding | Choose stainless steel material | |
| Other configuration requirements | 1. Stainless steel sewage tank;
2, clean water tank; 3. Fixation device in the car; 4. LED inner ceiling light; 5. Spray system; 6. Disinfection lamp; 7. Stainless steel rear retaining water trough; 8, LED profile lights, warning signs, safety signs, fire extinguishers, reflective signs, orange reflective tape, rubber anti-collision block, safety sign lights. 9. Information such as outer packaging and operation instructions shall be marked in English |
|
