Project Description

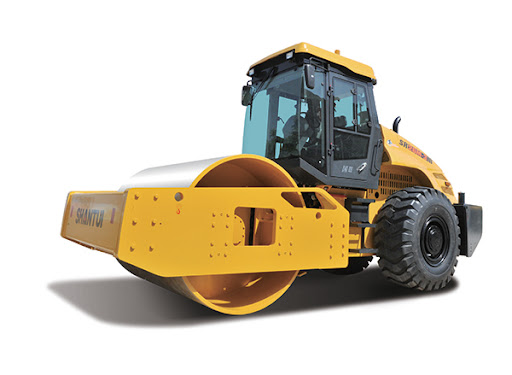

China Brand Road Construction Machinery Shantui Single-Drum Road Roller SR26M-3
SHANTUI series Road Rollers mainly include mechanical vibratory road roller with single steel wheel,full-hydraulic vibratory road roller with single steel wheel, stactic rolling type, double steel wheel and pneumatic typed rollers. They are mainly used in compaction of the airport, road, mine, dam, railway, and other construction sites. SHANTUI road roller possesses excellent compaction performance, outstanding working efficient shock absorption seat, thus enhancing operation comfort in an all-round way, and it also possesses relatively high reliability for it adopts the imported hydraulic system. SHANTUI road roller can be configured with a compactness measuring instrument to monitor and detect the compaction process automatically.
| Parameter name | SR26M-3 (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 26000 |
| Exciting force (KN) | 435/315 |
| Vibration frequency (Hz) | 29/35 |
| Nominal amplitude (mm) | – |
| Ground pressure (KPa) | – |
| Gradeability (%) | – |
| Engine | |
| Engine model | WP6 |
| Rated power/rated speed (kW/rpm) | 140/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 6442*2432*3314 |
| Driving performance | |
| Forward speed (km/h) | 2.8/5.5/9.0 |
| Reversing speed (km/h) | 2.8/5.5/9.0 |
| Chassis System | |
| Wheelbase (mm) | – |
| Tank capacity | |
| Fuel tank (L) | 375 |
| Working device | |
| Compacting width（mm） | 2170 |
Application：
It can be applied to compaction of non-cohesive materials such as gravel, gravel, sand and gravel mix, sandy soil and rock fill in road base layer, sub-base layer, and filling project, and can be widely used in construction projects such as high-grade highways, railroads, airports, ports, and embankments.
