Project Description

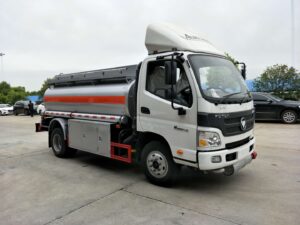

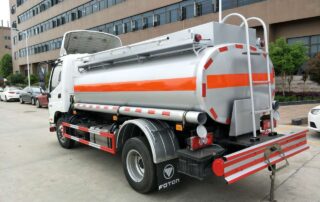

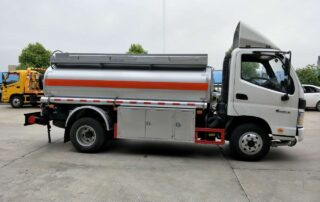

Foton AUMARK 4X2 Oil Tank Truck C38
| Vehicle model | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725×2100×2280 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3305 |
| Gross vehicle weight（kg） | 6500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(8.25R16) | |
Technical Parameters of Refueling Truck
| Tank | top color | optinal |
| Volume | 4m3 | |
| Tank material and thickness | Part of the tank material、thickness：Q235B carbon steel, 4mm
Head material and thickness: Q235B carbon steel, 5mm |
|
| Emergency shut-off valve | Quantity: 1
Material thickness: aluminum alloy |
|
| Manhole cover | Type: Aluminum European standard breathing valve with tank port
Quantity: 1 Diameter: 500mm |
|
| Oil pump and pipeline | Oil pump, seamless steel pipe; Pump flow: 30m³/h;
Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW |
|
| Pump inlet and outlet | Specification: choose one of DN50/DN65, aluminum alloy
Control method: manual |
|
| Refueling reel and fueling gun | 15m automatic return reel nozzle | |
| Fuel dispenser | Three gold medals Chinese and English fuel dispenser (with ticketing function) | |
| power takeoff | SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output) | |

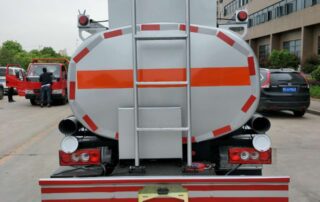

| Climb the ladder | Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board | |
| Top guard | Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail
Anti-skid plate installed on the top of the tank-anti-skid walkway |
|
| Tube box | Number: 2
Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65. |
|
| Fire extinguisher barrel | Material: Q235
Quantity: 2 |
|
| Fire extinguisher | Specification: 4KG Quantity: 2 | |
| exhaust pipe | Rear to front | |
| Electrostatic device | Metal electrostatic plate, electrostatic belt device: 1 each | |
| Subframe | Tank bottom auxiliary beam | Made of Q345 carbon steel plate |
