Project Description

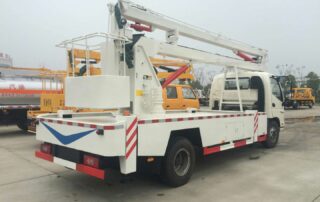

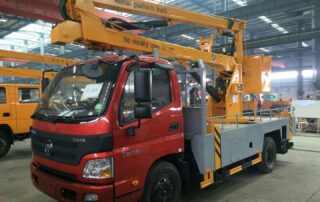

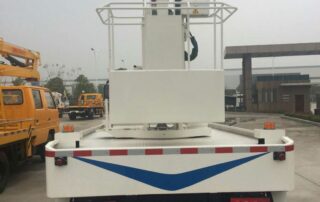

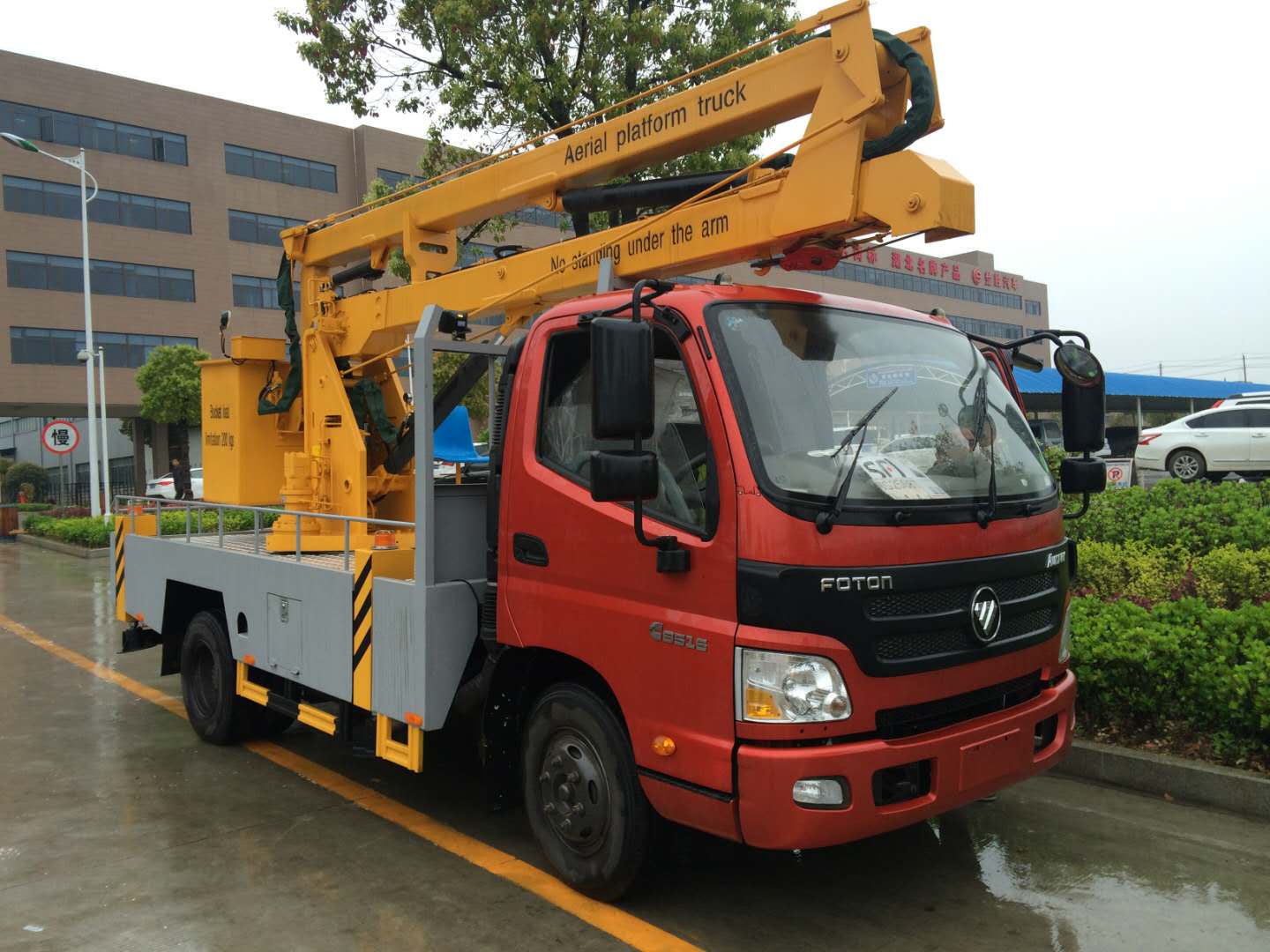

FOTON AUMARK Aerial Platform Truck C33/C38
| Vehicle model | AUMARK-C33 | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 | 6725×2100×2280 |
| Wheel base(mm) | 3360 | 3800 | |
| Weight data | Curb weight(kg) | 2600 | 3305 |
| Gross vehicle weight（kg） | 6495 | 6500 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 | 95 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6TS55 | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 3+1 | 9 |
| Rear suspension/Leaf spring number | 6+7 | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Central drum brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | 6+1(8.25R16) | |
| Power take-off system | Power is taken by the gearbox and operated in the cab | |
| Work bucket | Size 1150×650×1150mm Rated load 200kg | |
| Boom | Two-section folding arm | |
| Swivel device | Two-way 360° continuous rotation | |
| operating system | Two operating systems of working bucket and turntable | |
| Hydraulic system | Electro-hydraulic control, stepless speed regulation, equipped with emergency pump | |
| Go platform | Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform | |
| safety devices | Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device | |
| Leveling system | Built-in combined automatic leveling system | |
| Main operating technical parameters | Working height of bucket | 12.3m |
| Maximum working range of working bucket | 6m | |
| Rated load of working bucket | 200Kg | |
| Rotation angle | ±360° continuous | |
| Working range at maximum working height of working bucket | 3m | |
| Working height when working bucket maximum working range | 7.3m | |
| Lifting time of working platform | 80~130s | |
| Swing speed | 0～2 r/min | |
