Project Description

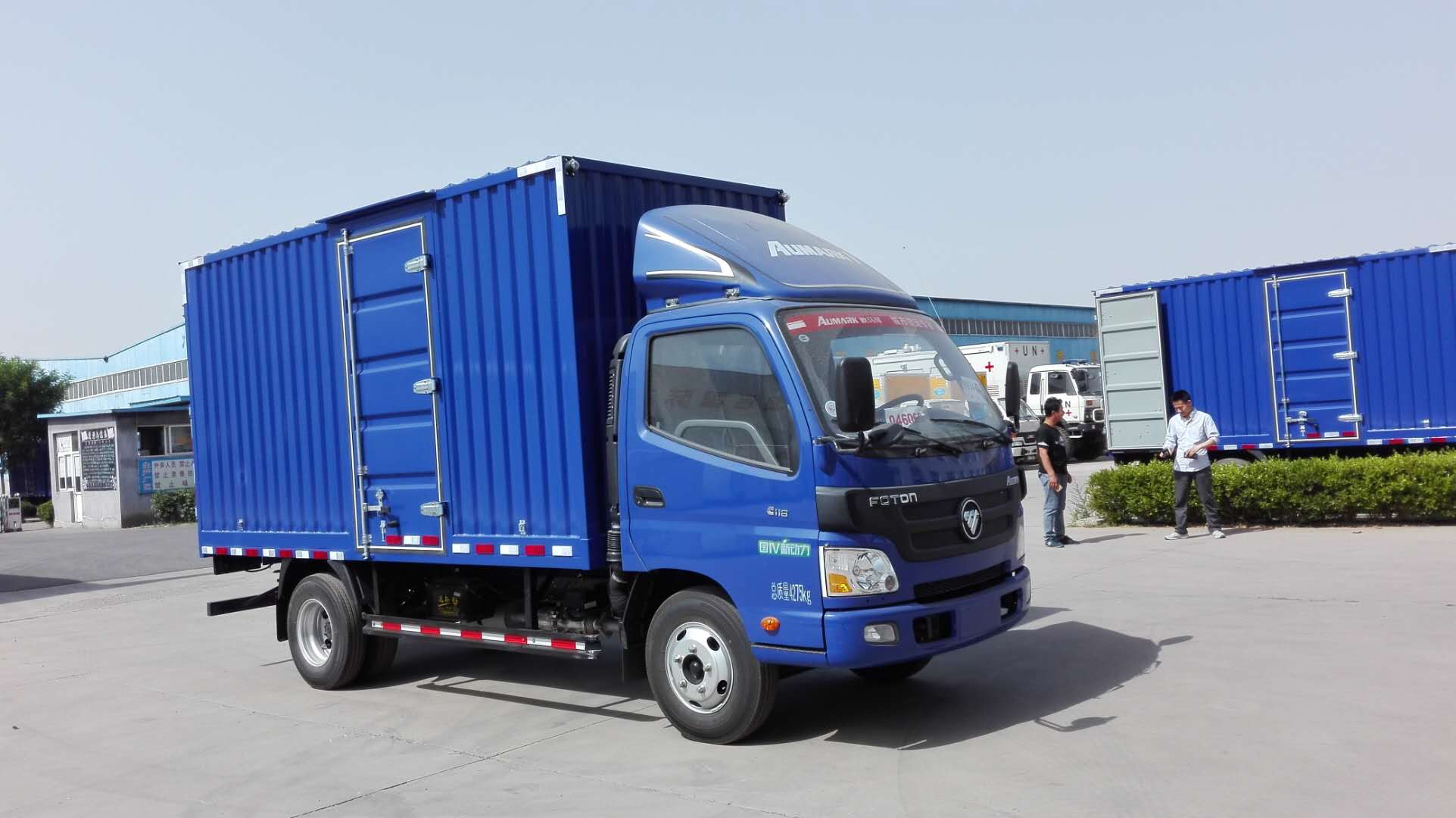

FOTON AUMARK-C33/C38 Corrugated Board Box Cargo Truck
Specification:
| Vehicle model | AUMARK-C33 | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 | 6725×2100×2280 |
| Wheel base(mm) | 3360 | 3800 | |
| Weight data | Curb weight(kg) | 2600 | 3305 |
| Gross vehicle weight（kg） | 6495 | 6500 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 | 95 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6TS55 | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 3+1 | 9 |
| Rear suspension/Leaf spring number | 6+7 | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Central drum brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | 6+1(8.25R16) | |
Technical requirements for car (corrugated board)
| Packing case size | Internal: 4170 * 2100 * 2100 | |
| The compartments body
requirements |
Compartments body skeleton | Front upper beam left and right upper beam for square tube 40*60*2.0mm, |
| The rear upper beam is a square tube of 100*50*2.0mm | ||
| Door frame for square tube 40*30* 1.2mm, 30*30* 1.0mm | ||
| Chassis beam | Square tube beam 40*60*2 mm | |
| Plate girder | Square tube beam 100*50*2 mm | |
| The floor core | Pattern steel plate 2.0mm | |
| The back door | Double open the door | |
| The door locks are galvanized | ||
| Door link for 3 hinges | ||
| A side door | The copilot side is equipped with 1M wide single open side door | |
| The door locks are galvanized | ||
| Door link for 3 hinges | ||
| post | Square tube 80 * 40 * 2.0 | |
| Compartments board | Corrugated board is 1.0 mm | |
| attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
| special
performance |
Corrosion protection | Cargo box should meet 504 hours of salt spray test (including connecting bolts, welding points, paint surface corrosion resistance). |
| In the rain | The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. |
