Project Description

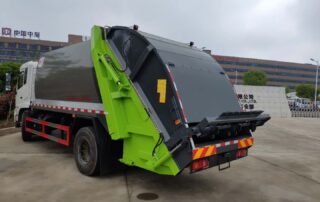

FOTON AUMARK C33/C38 Garbage Truck 8CBM
| Vehicle model | AUMARK-C33 | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 | 6725×2100×2280 |
| Wheel base(mm) | 3360 | 3800 | |
| Weight data | Curb weight(kg) | 2600 | 3305 |
| Gross vehicle weight（kg） | 6495 | 6500 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 | 95 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6TS55 | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 3+1 | 9 |
| Rear suspension/Leaf spring number | 6+7 | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Central drum brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | 6+1(8.25R16) | |
| Car body structure | Volume | 6m³ |
| Body shape | Curved box | |
| Body material and thickness | Material: Q345 manganese steel Thickness of side plate: 3mm Thickness of the bottom plate: 4mm | |
| Dozer | Material: Q345manganese steel | |
| Filler | Material: Q345manganese steel | |
| Front sewage tank | Material: Q235 carton steel volumb:160L | |
| Flip frame | Material: Q345 manganese steel | |
| Climb the ladder | One side of the car body, material: Q235 carbon steel | |
| Hydraulic system | Dozer cylinder | 1 piece |
| Scraper cylinder | 2 piece | |
| Skateboard cylinder | 2 piece | |
| Rear flip cylinder | 2 piece | |
| Lifting cylinder | 2 piece | |
| Hydraulic tank | 90L 1 piece | |
| Hydraulic tubing | Black rubber steel wire hose and steel oil pipe | |
| Hydraulic oil pump | Hefei Wanye Oil Pump | |
| power takeoff | Pava | |
| Multi-way valve | Yangzhou Zhongmei multi-way valve, balance valve | |
| System working pressure | 16MPa | |
| Manual operation | 1 set on the rear side of the cab | |
| Electric control system | operating system | Taiwan Yonghong imported PLC electric control system and manual operation device |
| Electronic control operation button | 1 set at the left and right of the rear of the car body (2 sets in total) | |
| Compression parameters | Garbage density after compression | 0.5-0.8t/m3 |
| Loading time once | Less than30S | |
| Unloading operation time | Less than40s | |
| Compression ratio | 1:2.5 or more |
