Project Description

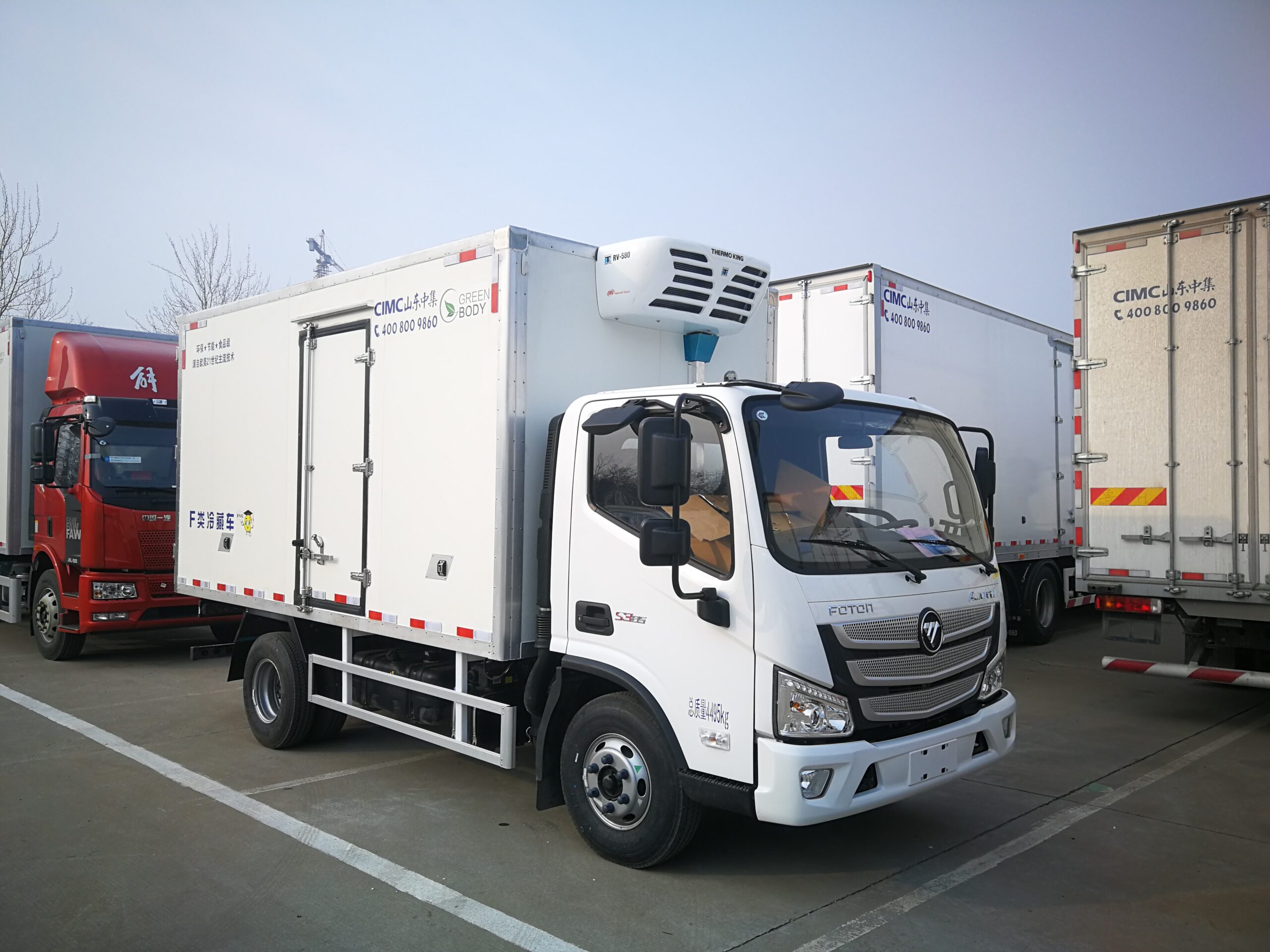

FOTON AUMARK S33/S38 Refrigerated Truck 4X2
| Vehicle model | AUMARK-S33 | AUMARK-S38 | |
| Cabin | Single row/W2060/left rudder | Single row/W2060/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5890×2105×2400 | 6730×2138×2440 |
| Wheel base(mm) | 3360 | 3800 | |
| Weight data | Curb weight(kg) | 3210 | 3528 |
| Gross vehicle weight（kg） | 8275 | 11995 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 105 | 105 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6S558 | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6T/5.286 | 6.5T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 | 9 |
| Rear suspension/Leaf spring number | 8+6 | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Brake gas brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/(L8.25R1614L) | 6+1/( 8.25R20 14PR) | |
Technical parameters of a refrigerated truck
| voltage | 24V | |||
| Packing case | Internal size | 4100*2000*2000 | ||
| The material | Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3) | |||
| thickness | Front plate, backplate, top plate, bottom plate, and left and right plate: more than 100mm | |||
| The framework | The upper and lower frames and front columns are aluminum profiles or stainless steel | |||
| Open the door form | Double rear door, passenger side single side door | |||
| The refrigeration unit | Brand and Specifications | American Cold King /SV400 | ||
| Refrigeration requirements | Minimum temperature: -18℃ | |||
| The optional features | No backup electricity, no heating | |||
| The attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 | ||
| Door lock and folding | Choose stainless steel material | |||
| Lamps | Adopt LED seal lamp, lampshade needs to glue seal | |||
| rear pedal | Aluminum alloy pedal | |||
| interior | Equipped with patterned aluminum bottom plate and patterned anti-collision plate (300mm height) | |||
| The special performance | Corrosion protection | The cargo box shall meet the salt spray test for more than 504 hours (including connecting bolts, welding points, and anti-corrosion of paint surface) | ||
| In the rain | The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. | |||
| airtight | Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h | |||
| Heat insulation | The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5 | |||
