Project Description

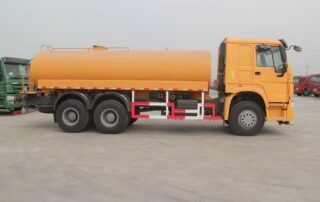

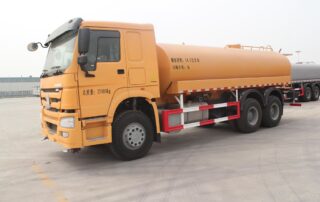

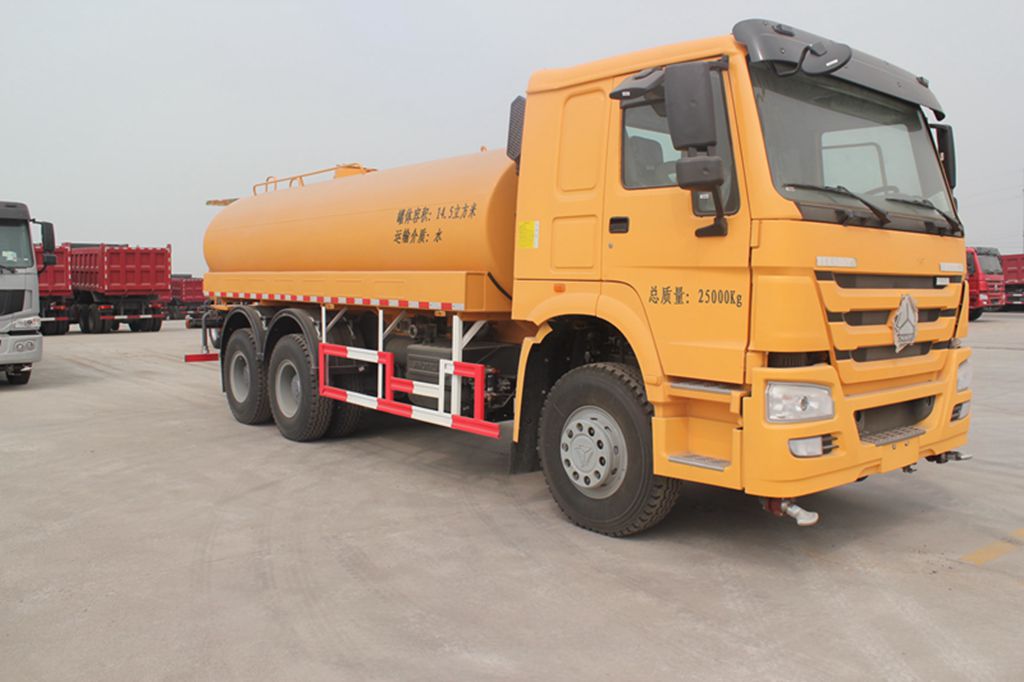

SINOTRUK HOWO 20cbm Oil tank truck for transport fuel
Specification
| SINOTRUK HOWO 20cbm Oil tank truck for transport fuel | |
| Chassis Model | ZZ1257M4341W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner, and two new-style seats) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tire |
| Wheel base | 4325+1350,4300+1400 (mm) |
| Capacity of tank body | 16-20CBM |
| Thickness of tank body | 5mm,With 5 cabin |

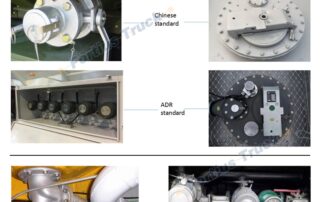

| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Compartments | 1-5 |
| other | With PTO, Pump, Oil gun, Fire extinguisher, and Pipe ( Optional) |
Advantage:
SINOTRUK HOWO 20cbm Oil tank truck for transport fuel is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil, and coal tar oil transportation and storage.
Competitive Advantage:
1) Our Oil tank truck with advanced butt welding technology, after the forming of the tank high-pressure gas leak detection, the tank has a high intensity, stable center of gravity, safe and stable vehicle characteristics;
2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance.
3) Divided into different oil products, chemicals, food, such as liquid food truck, chemical liquid truck, insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) the key parts adopt the world’s top technology products
6) based on strong technical support and top-level technology make the trucks with high quality and more reliable
