Project Description

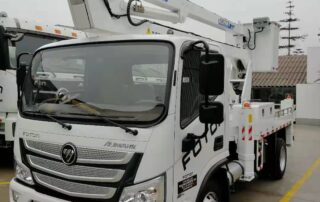

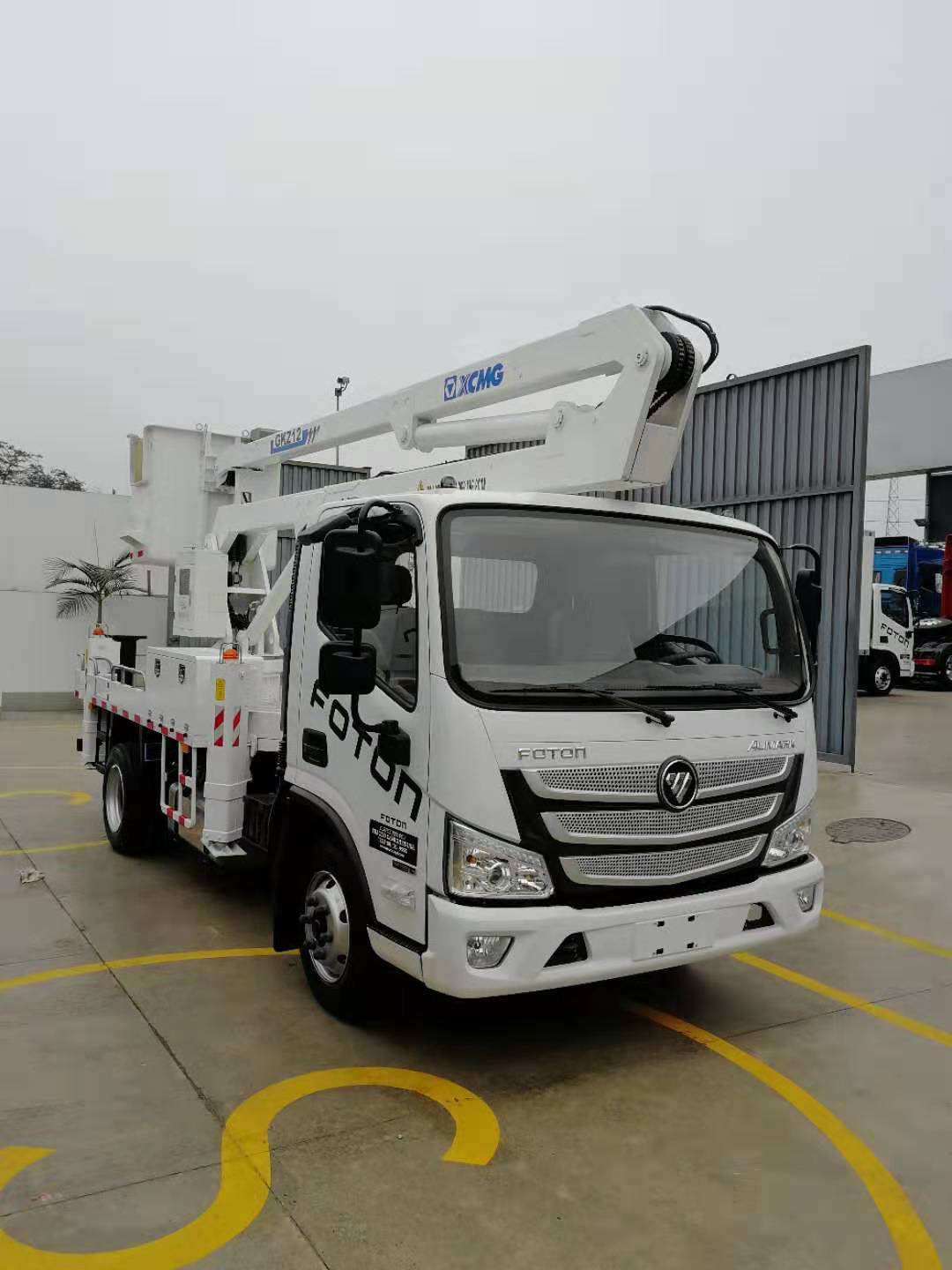

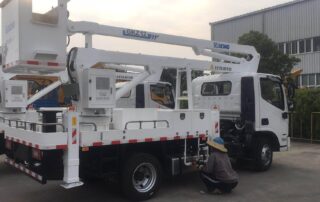

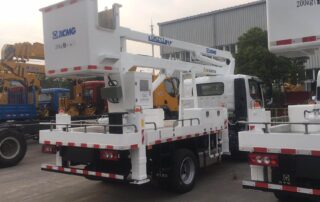

XCMG FOTON AUMARK Aerial Platform Truck S33/S38
| Vehicle model | AUMARK-S38 | AUMARK-S33 | |
| Cabin | Single row/W2060/left rudder | Single row/W2060/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6730×2138×2440 | 5890×2105×2400 |
| Wheel base(mm) | 3800 | 3360 | |
| Weight data | Curb weight(kg) | 3528 | 3210 |
| Gross vehicle weight（kg） | 11995 | 8275 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 105 | 105 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6S558 | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6.5T/5.286 | 6T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 | 9 |
| Rear suspension/Leaf spring number | 8+6 | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Brake gas brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 8.25R20 14PR) | 6+1/(L8.25R1614L) | |
| Power take-off system | Power is taken by the gearbox and operated in the cab | |
| Work bucket | Size 1150×650×1150mm Rated load 200kg | |
| Boom | Two-section folding arm | |
| Swivel device | Two-way 360° continuous rotation | |
| operating system | Two operating systems of working bucket and turntable | |
| Hydraulic system | Electro-hydraulic control, stepless speed regulation, equipped with emergency pump | |
| Go platform | Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform | |
| safety devices | Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device | |
| Leveling system | Built-in combined automatic leveling system | |
| Main operating technical parameters | Working height of bucket | 12.3m |
| Maximum working range of working bucket | 6m | |
| Rated load of working bucket | 200Kg | |
| Rotation angle | ±360° continuous | |
| Working range at maximum working height of working bucket | 3m | |
| Working height when working bucket maximum working range | 7.3m | |
| Lifting time of working platform | 80~130s | |
| Swing speed | 0～2 r/min | |
XCMG FOTON AUMARK Aerial Platform Truck S33/S38
| Vehicle model | AUMARK-S38 | AUMARK-S33 | |
| Cabin | Single row/W2060/left rudder | Single row/W2060/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6730×2138×2440 | 5890×2105×2400 |
| Wheel base(mm) | 3800 | 3360 | |
| Weight data | Curb weight(kg) | 3528 | 3210 |
| Gross vehicle weight（kg） | 11995 | 8275 | |
| Persons in cab | 3 | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 105 | 105 |
| ENGINE | Model | F3.8s3141 | F3.8s3141 |
| Emissions standards | EuroⅢ | EuroⅢ | |
| Displacement（L） | 3.76 | 3.76 | |
| Rated Power（kw/rpm） | 105 | 105 | |
| Max torque （N.m/rpm） | 450 | 450 | |
| Gearbox | Model | 6S558 | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6.5T/5.286 | 6T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 | 9 |
| Rear suspension/Leaf spring number | 8+6 | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking | Drum pneumatic braking |
| Parking brake | Brake gas brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 8.25R20 14PR) | 6+1/(L8.25R1614L) | |
| Power take-off system | Power is taken by the gearbox and operated in the cab | |
| Work bucket | Size 1150×650×1150mm Rated load 200kg | |
| Boom | Two-section folding arm | |
| Swivel device | Two-way 360° continuous rotation | |
| operating system | Two operating systems of working bucket and turntable | |
| Hydraulic system | Electro-hydraulic control, stepless speed regulation, equipped with emergency pump | |
| Go platform | Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform | |
| safety devices | Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device | |
| Leveling system | Built-in combined automatic leveling system | |
| Main operating technical parameters | Working height of bucket | 12.3m |
| Maximum working range of working bucket | 6m | |
| Rated load of working bucket | 200Kg | |
| Rotation angle | ±360° continuous | |
| Working range at maximum working height of working bucket | 3m | |
| Working height when working bucket maximum working range | 7.3m | |
| Lifting time of working platform | 80~130s | |
| Swing speed | 0～2 r/min | |
